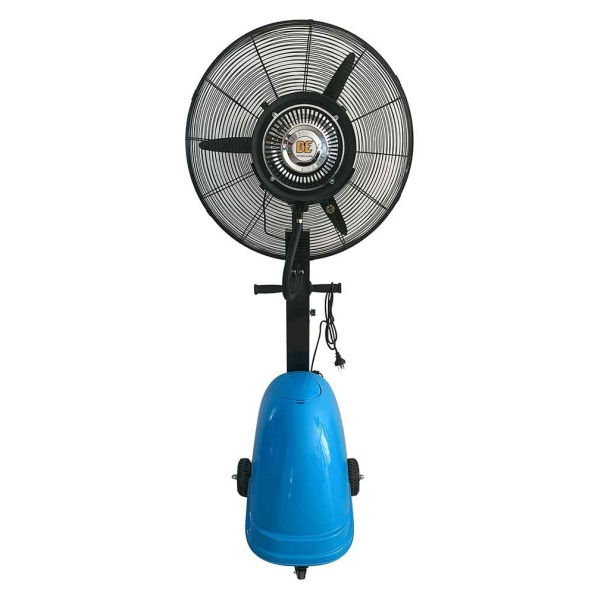

Misting Fan – BE Industrial

The BE industrial misting fan is fed by a huge 41 Litre water storage tank and includes a no mess drip collector. You can also control the mist volume output to help get you through the heat this summer.

Ideal for:

• Large outdoor events
• Industrial
• Warehouse
• Workshop
• Horticulture
• Agriculture

Features

• Great for workshops and factory floor areas
• Adjustable height to 1.8m and 3 speed operation
• Large water storage tank
• Integrated water reservoir
• No mess drip water collector
• Heavy duty base for safety and stability
• Portable installation: self-contained unit moves easily between locations;
• Fixed wheels and lockable castors for safety and convenience
• Nozzle-less misting hub technology (high-speed centrifugal atomizer) is guaranteed not to clog
• Adjustable dial to control misting volume
• Low pressure water pump for reliability and longevity
• Automatic shut-off when water tank is empty
• Suitable for cooling people, stockbreeding and greenhouse applications

Specifications

• Motor: 240V/50Hz/260W 3 Speed
• Fan Blade: 650mm Cast Steel 3 Blade
• Maximum airflow: 138 cubic metres per minute
• Maximum Noise: 68dB
• Oscillation angle: 90º
• Fan tilt adjustable: 30º
• Adjustable Mist – Exit Vol: 0-16kg/Hour
• Maximum water supply: up to 9hours
• Effective area: 200 sq metres
• Operating Temperature: 10 – 50° Celcius
• Effective temp drop: 4 – 8° Celcius
• Operation Humidity: 10% – 85%
• Diameter of atomized drip: < 10 um
• Mist Jet distance: 8-10 m
