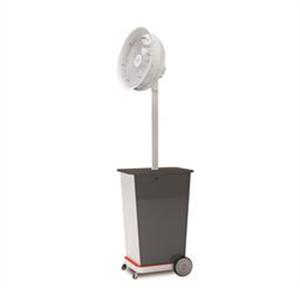

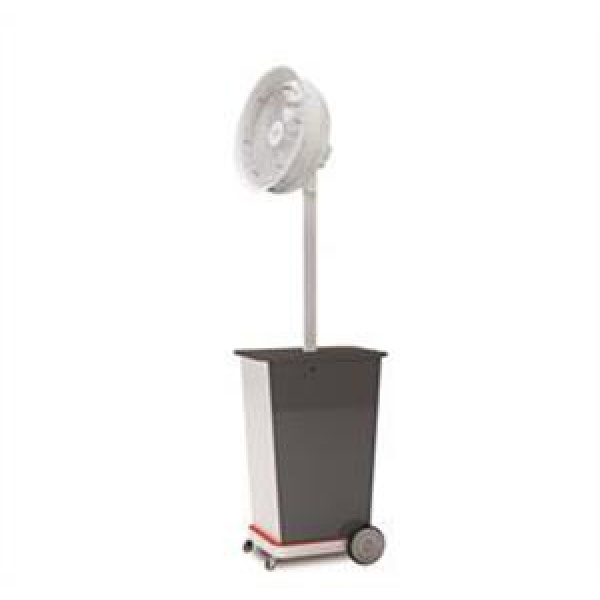

Misting Fan – Atmosfera 90 Pro

The Atmosfera 90 produces a cloud of ultra-fine mist that evaporates within seconds of contact with hot air removing the heat quickly and effectively. The natural exchange of hot air to cool provides a reduction in temperature by as much as 15 degrees Celsius without wetting floors or surfaces.

A remote control allows you to manage ON/OFF operation of the fan and misting component. The fan can be used independent of the misting system for occasions when only ventilation is required.

Long-lasting and low maintenance, the programmable high-pressure misting fan stands an impressive 2.3 metres tall. The mist fan’s base in powder-coat steel is hard-wearing and can complement most outdoor decor. Alternatively, it can be branded with sponsor advertising as an added benefit to your business.

In Australia’s hot climate, the Atmosfera 90 is the perfect solution to keep your workers and your customers cool, even on the hottest of days.

Ideal for outdoor settings including:

• events
• cafes
• bars
• terraces
• poolside
• beach resorts
• entertainment centres
• industrial sheds

Standard equipment:

• Electric motor-pump F60
• Steel powder-coat base
• Fan with ring of 6 anti-drip fog nozzles
• Analogic timer, to set pause/work cycles
• 50L tank
• Autonomy – 5 hours at 50% work / 50% pause
• Remote control manages On/OFF misting + fan
• Height of the nebuliser: 230cm
• Insulation of fan: IP54
• Air flow rate: 9.000 m3/h
• Rotation 90°: yes
• No. of fan motor speeds: 3
• Power of fan motor: 125w
• No. of 015 nozzles with antifrop valve and filter: 6
• Water pressure: 900psi
• Spray water flow rate: 17L/min
• Power of pump motor: 200w
• Water tank capacity: 50L
• Connection to water tap: yes
• Analogue time for setting pause/work cycles: yes
• Stop due to low water: yes
• Remote control: yes
• Table: 1
• Automomy(50% work – 50% pause): 5.5 ore
• Weight: 60kg
• Total power: 325w
