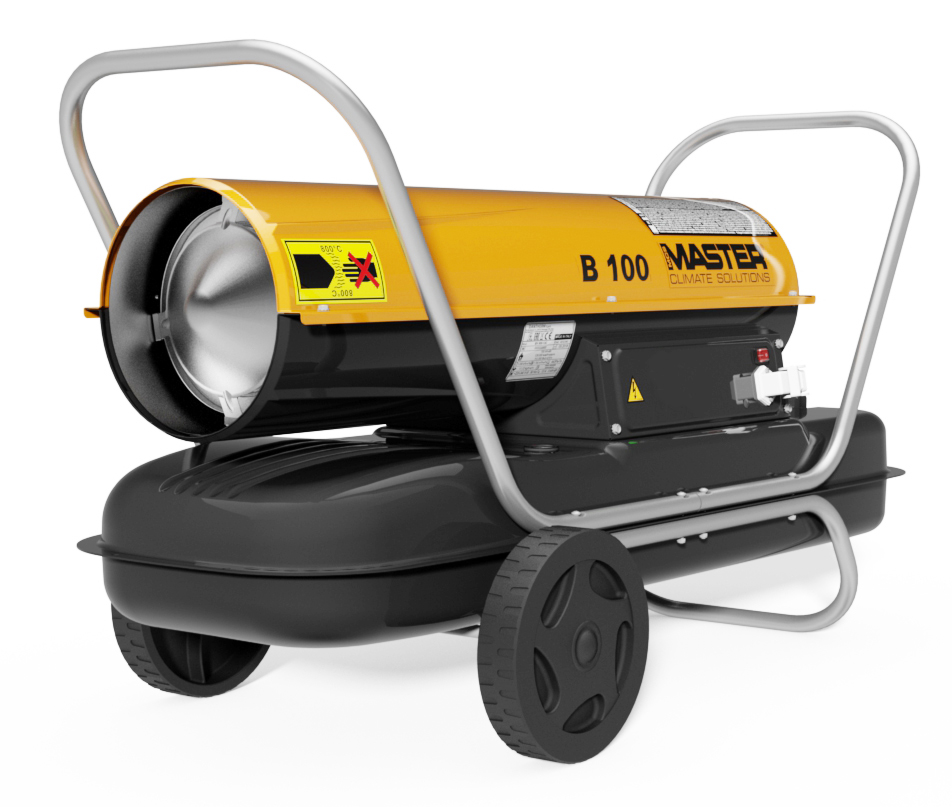

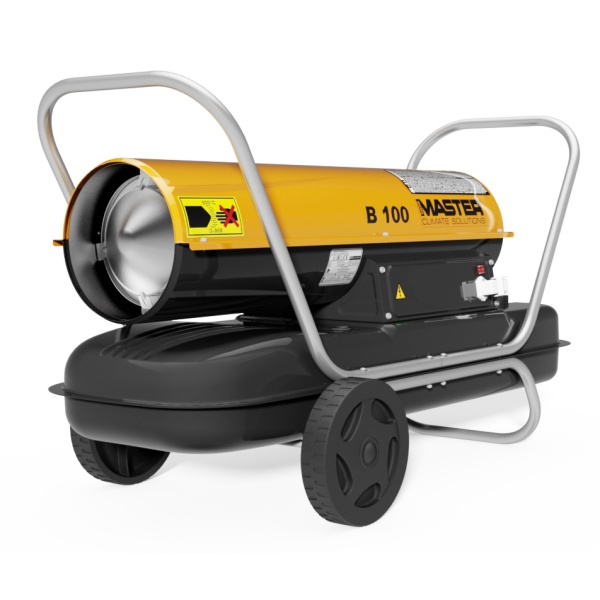

29kW MASTER – Forced Air Diesel Heater
$1,235.00 excl. GST
- Nationwide Delivery
- Pick up from Auckland Store (Rosedale, Northshore)
Direct oil fired heaters – low pressure
Direct oil heaters are highly efficient devices that provide large volumes of instant heat where it is required. They are ideal for open or well-ventilated areas like factories, warehouses or construction sites. Master direct heaters are known for their efficiency, robustness, ease of use and operational safety.
Direct oil fired heaters – low pressure
Direct oil heaters are highly efficient devices that provide large volumes of instant heat where it is required. They are ideal for open or well-ventilated areas like factories, warehouses or construction sites. Master direct heaters are known for their efficiency, robustness, ease of use and operational safety.
Key features
-
High air flow
-
Two oil filters – oil tank filter and suction filter
-
Thermally protected motor
-
Electronic flame control with photocell
-
Stainless steel combustion chamber
Product specifications
| Specifications | Units | B 100 |
|---|---|---|
| Heating power |
kW
|
29
|
| Heating power |
Btu/h
|
99,300
|
| Heating power |
kcal/h
|
25,000
|
| Air flow |
m³/h
|
800
|
| Fuel autonomy |
h
|
16
|
| Thermostat control |
Analogue or digital
|
|
| Fuel consumption |
l/h
|
2.7
|
| Power supply |
V/Hz
|
220/240/50-60
|
| Electric power |
kW
|
0.23
|
| Rated current |
A
|
1
|
| Protection |
IP41
|
|
| Tank capacity |
l
|
44
|
| Product size (l x w x h) |
mm
|
1075 x 600 x 480
|
| Box size (l x w x h) |
mm
|
1110 x 400 x 450
|
| Net/gross weight |
kg
|
25/28
|
| Pallet |
pcs
|
10
|
| Dual voltage |
Available
|
Suitable for:
- Agriculture
- Automotive
- Buildings and commercial spaces
- Construction
- General industry and production
- Military and aerospace
- Rental companies
