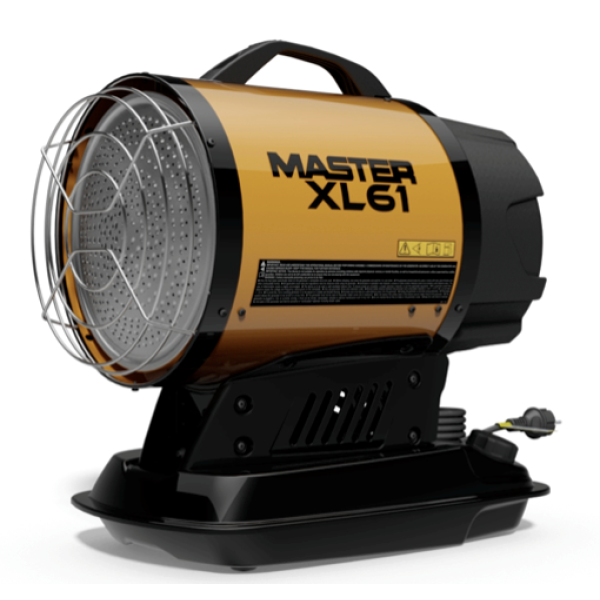

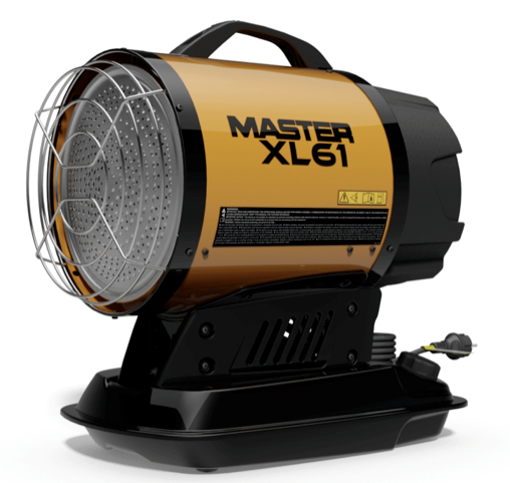

Diesel Radiant Heater – 17kW (240V)

Product Code: PIN XL61 Categories , ,

$1,595.00 excl. GST

Infrared oil fired heaters with Master burner

Infrared oil heaters deliver heat fast and exactly to the place where it is required without any air movement. They are suitable for dust-free drying walls or paints, defrosting machinery or pipelines, heating the working areas.

Infrared oil fired heaters with Master burner

Infrared oil heaters deliver heat fast and exactly to the place where it is required without any air movement. They are suitable for dust-free drying walls or paints, defrosting machinery or pipelines, heating the working areas.

Key features

  • Low noise
  • Infrared heating (short wave)
  • No air flow
  • Electronic flame control with photocell
  • Post-ventilation
  • Standard oil level indicator
  • ILME socket for remote thermostat: analogue or digital
  • Suction filter and inlet filter
  • Snorkel
  • Overheat thermostat
  • Anti-tilt switch

Similar to the sun, short-wave infrared radiation heats the objects without heating the air. Once objects (or walls) are penetrated with heat, they can also reradiate and heat other objects. Infrared radiation heats through fog or wind. Infrared radiation travels straight, unlike hot air which rises. Infrared heaters are an excellent solution for:

  • Heating objects, bodies or walls indoors and outdoors.
  • Drying plaster walls. Infrared heat penetrates the wall and evaporates the humidity of the wall from inside. Unlike an air flow heater which creates a dry surface which traps humidity in the wall.
  • Heating objects or limited indoor spaces. Unlike other methods where the hot air is quickly dispersed in the room.
  • Saving energy, because less energy is required for achieving the same heating effect.

Product specifications

Specifications Units XL 61
Heating power
kW
17
Heating power
Btu/h
58,000
Heating power
kcal/h
14,600
Fuel consumption
l/h
1.6
Fuel autonomy
h
7
Thermostat control
Analogue or digital (Optional)
Electric power
kW
0.2
Power supply
V/Hz
110-240/1ph/50
Rated current
A
1
Tank capacity
l
11
Product size (l x w x h)
mm
560 x 345 x 575
Box size (l x w x h)
mm
680 x 380 x 580
Net/gross weight
kg
19/21
Pallet
pcs
12
Included in the box
Owner’s Manual, power cord

Suitable for:

  • Agriculture
  • Automotive
  • Construction
  • Emergency services
  • Events, festivals and temporary structures
  • General industry and production
  • Military and aerospace
  • Rental companies
