Koshin SEH Series

Features

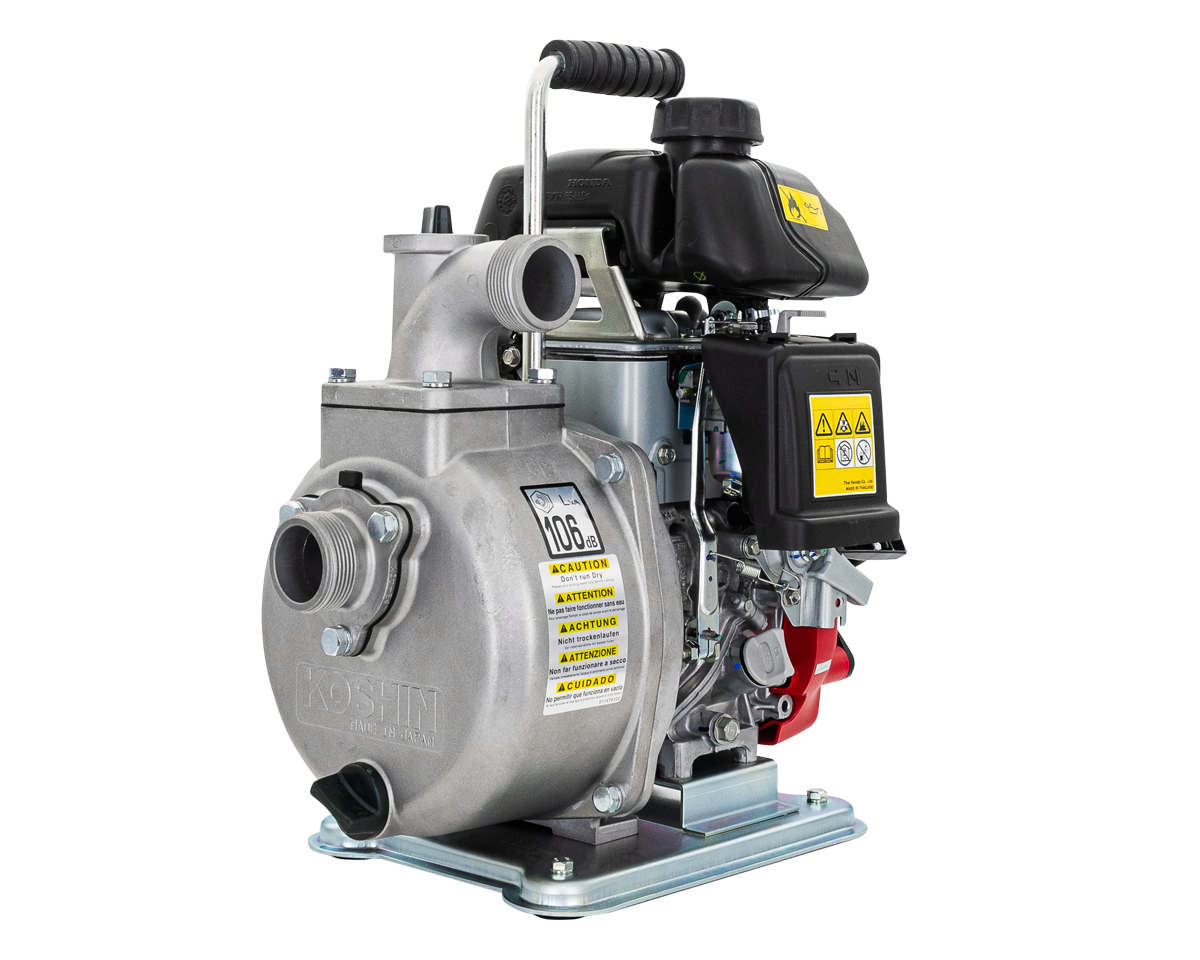

This Japanese made Koshin SEH-40H 1.5″ Ultralite pump powered by Honda GXH50 four stroke petrol engine is capable of producing flows up to 280 L/min and a maximum head of 43 m (61 PSI). Designed for pumping clean water the Koshin 1.5” Ultralite is easy to move from job to job due to its 11.5 kg Ultralite design. This pump is suitable for a wide variety of applications including water transfer, mop up fire fighting, irrigation, campsites and high pressure spraying.

• Environment friendly low noise Honda engine produces half the noise compared to two-stroke engine.
• Made in Japan
• Light weight with built in handle and base plate with anti-vibration mounts

Specifications

• Net weight: 11.5 kg
• Liquid consistency: Clear water
• Product dimensions: L 400 mm x W 330 mm x H 450 mm

Pump

• Suction: 1.5″ Male BSP
• Discharge: 1.5″ Male BSP
• Max Flow: 280 L/min
• Max Head: 43 m
• Max. suction depth: 8 m
• Material: Cast alloy pump body with cast iron impeller and volute
• Seals: NBR
• Maximum particle size: 2 mm

Engine

• Type: Honda 4-stroke & Single cylinder
• Model: Honda GXH50
• Max. output: 1.6 kW / 7,000 RPM
• Fuel tank capacity: 0.77 L
• Engine oil capacity: 0.25 L
• Start: Recoil

Accessories

• 3 Hose bands, 2 Hose couplings, 1 Strainer, 1 Engine tool sets

Applications

• Water Transfer
• Irrigation – Spraying
