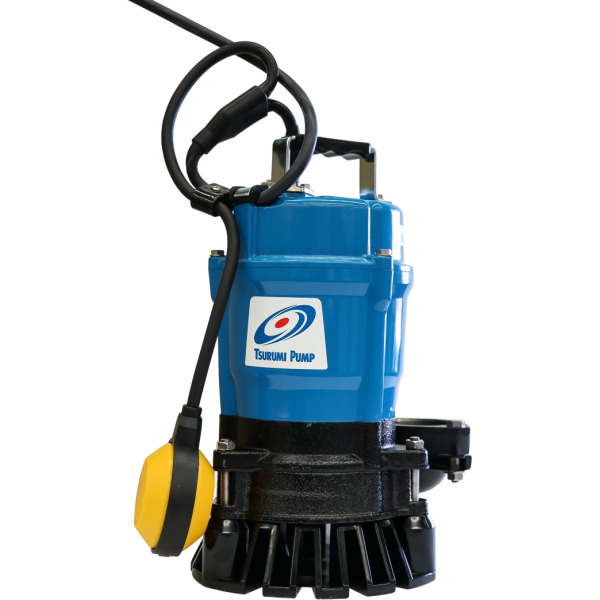

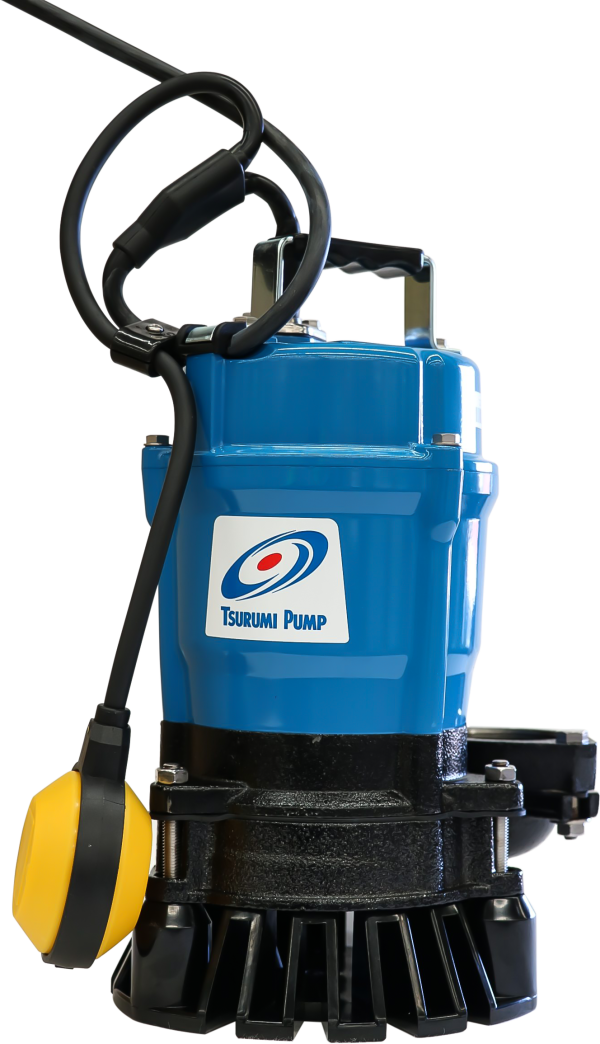

HS & HSZ are single-phase pump units with the durability equivalent to three-phase drainage pumps since the wear parts are made of abrasion-resistant materials. The side discharge spiral design allows smoother passage of the sucked solid matter. The shaft-mounted agitator prevents “Air Lock” that tends to take place on vortex or semi-vortex pumps.

Features

• Automatic start/stop operation controlled by flow switch.
• Built in sintered alloy agitator to prevent air lock and stir slurry.
• Anti wicking cable offers maximum protection against water penetrating through the cable entry should the cable be damaged extending the life of your pump.
• Vortex impeller designed for “high gap structure” made of urethane rubber that permits solid handling to 7 mm.
• Thermal motor protector
• Semi-vortex impeller designed for “high gap structure” made of urethane rubber that permits solid handling to 7 mm.
• Dual mechanical seals with silcon carbide face provides 5 times higher corrosion wear and heat resistance than tungsten carbide.
• Designed to pump water containing sand, solids and debris with minimal wear and clogging.
• Built-in shaft-mounted agitator suspends solids.
• Urethane Semi Vortex Impeller for maximum durability and pump performance.
• Oil Lifter provides lubrication of the seal faces. (Patented)
• V-Ring Seal design protects mechanical seal from abrasive particles. (Optional Accessories)
• Vertical Discharge Coupling Available to order (Part # 032-160-11)
• Angle 2-inch NPT Coupling Available to order (Part # 032-000-35)
• Straight 2-inch NPT Coupling Available to order (Part # 032-158-16)

Specifications

• Max Flow: 200 L/min
• Max Head: 12 m
• Motor Type: 240 V – 0.4 kW
• Motor Output: 1/2 hp
• Phase: Single
• Discharge Bore: 2″
• Cable Length: 10 m
• Dimension: 241 mm L x 184 mm W x 328 mm H
• Continuous Running Water Level: 8.89 cm
• Pump Weight: 11.3 kg
• Starting Method: Capacitor run
