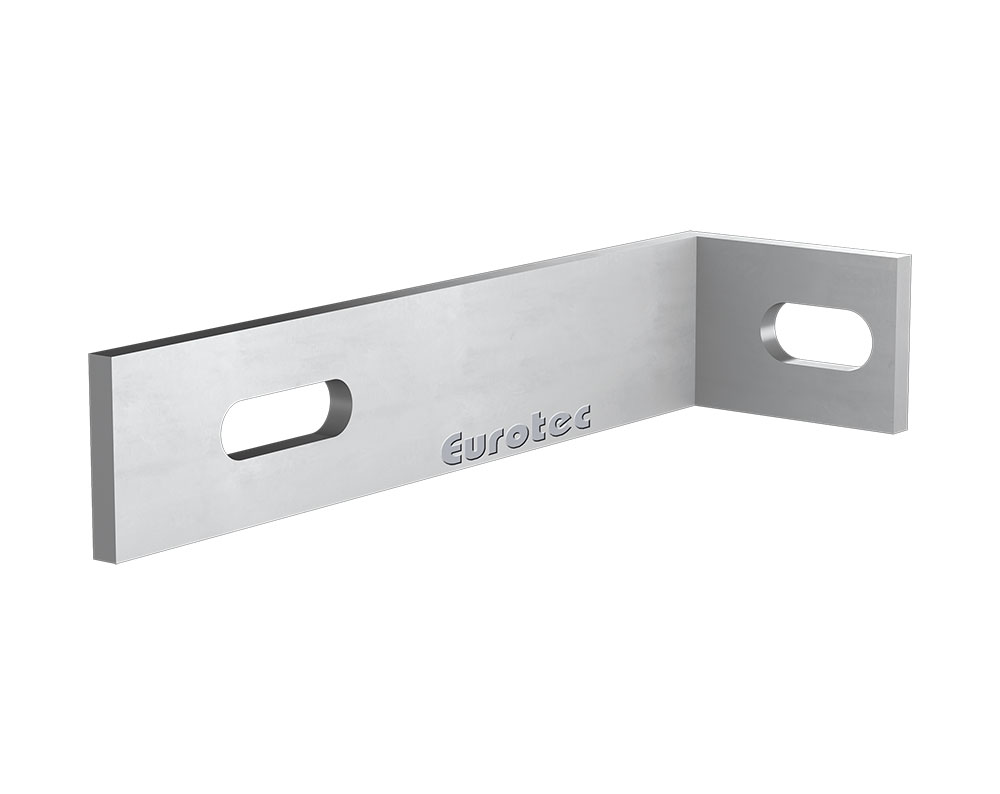

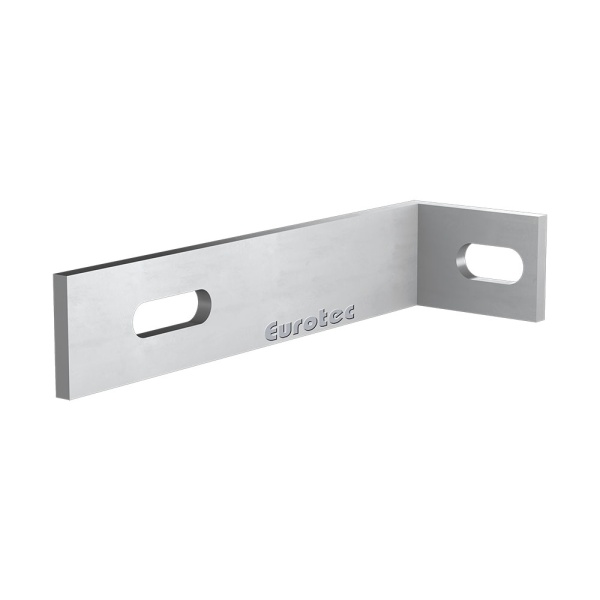

EVO Wall Connector (Pack of 10)

Product Code: 975627 Categories ,

$304.60 excl. GST

Size: 100mm x 30mm Secure EVO system to the structure

Pack size: 10

This is ideal for use as a position anchor for deck substructures made of aluminium. The bracket is used to fasten the EVO aluminium system profile directly to the wall. Two EVO wall-connection brackets are needed per aluminium profile. The slots in the wall-connection bracket allow the substructure to expand without problems and therefore prevent it from shifting out of position.


  • Slot diameter: 6 mm or 7 mm
  • Slot length: 15 mm
  • Material thickness: 3 mm

*Supplied with 1 drilling screw per wall-connection bracket for fastening to EVO aluminium system profile.
